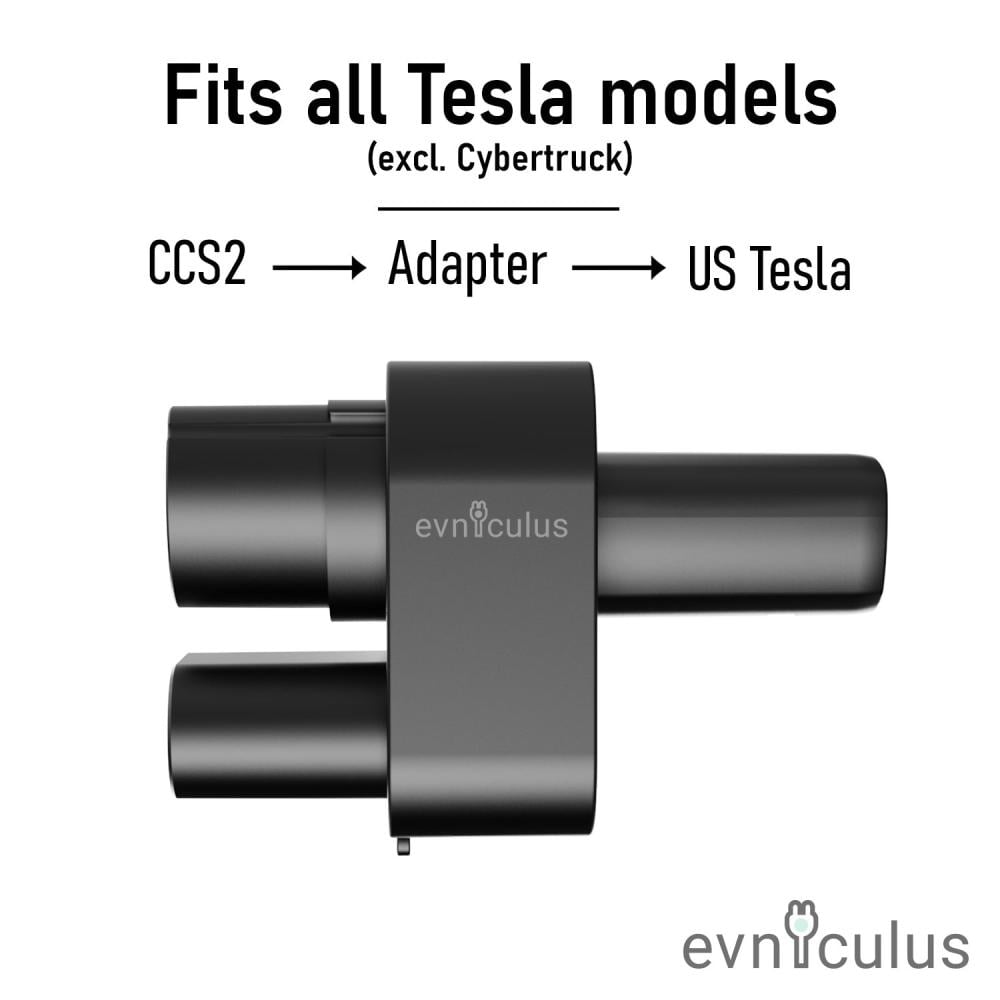

The CCS2 to US Tesla DC adapter enables efficient and easy charging of American Tesla vehicles at CCS2 Combo fast-charging stations, ensuring full compatibility and high-performance charging across Saudi Arabia and the GCC.
Key Features of the CCS2 to US Tesla DC Adapter:

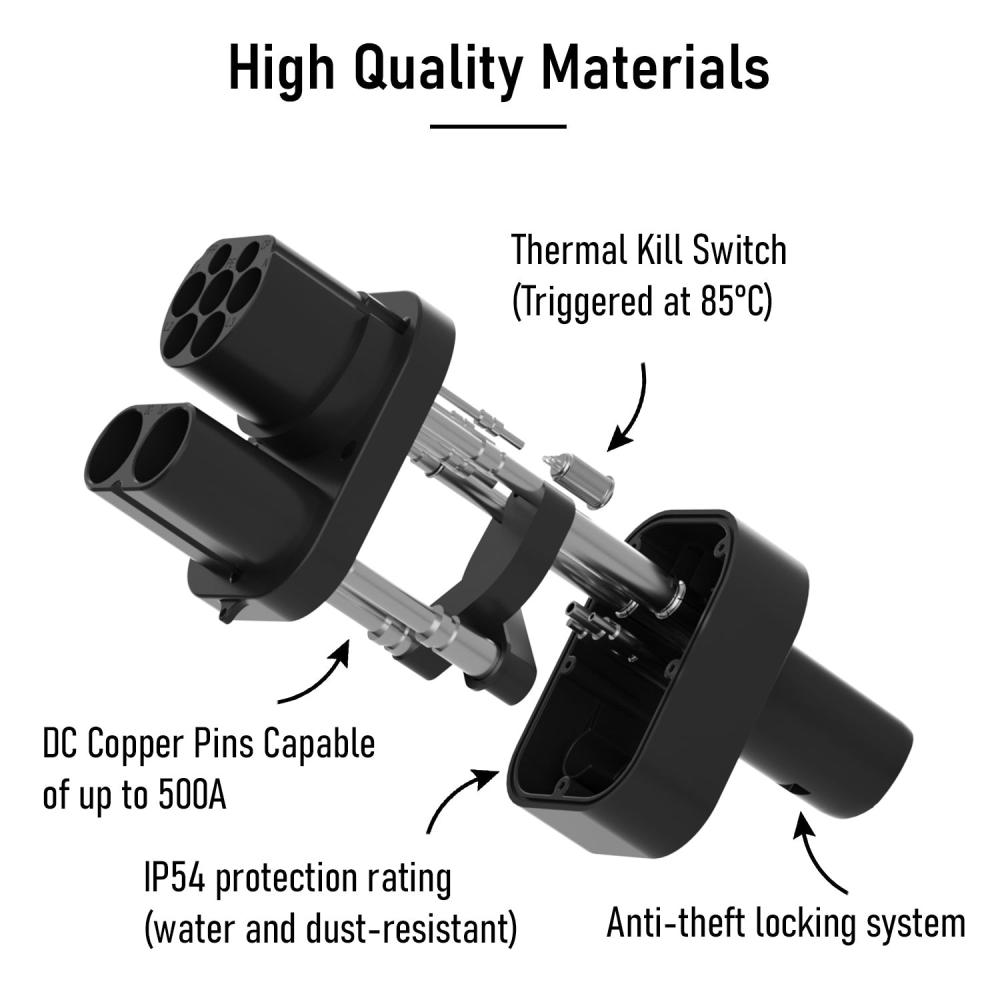

- DC fast charging up to 250 kW, equivalent to original Tesla chargers.

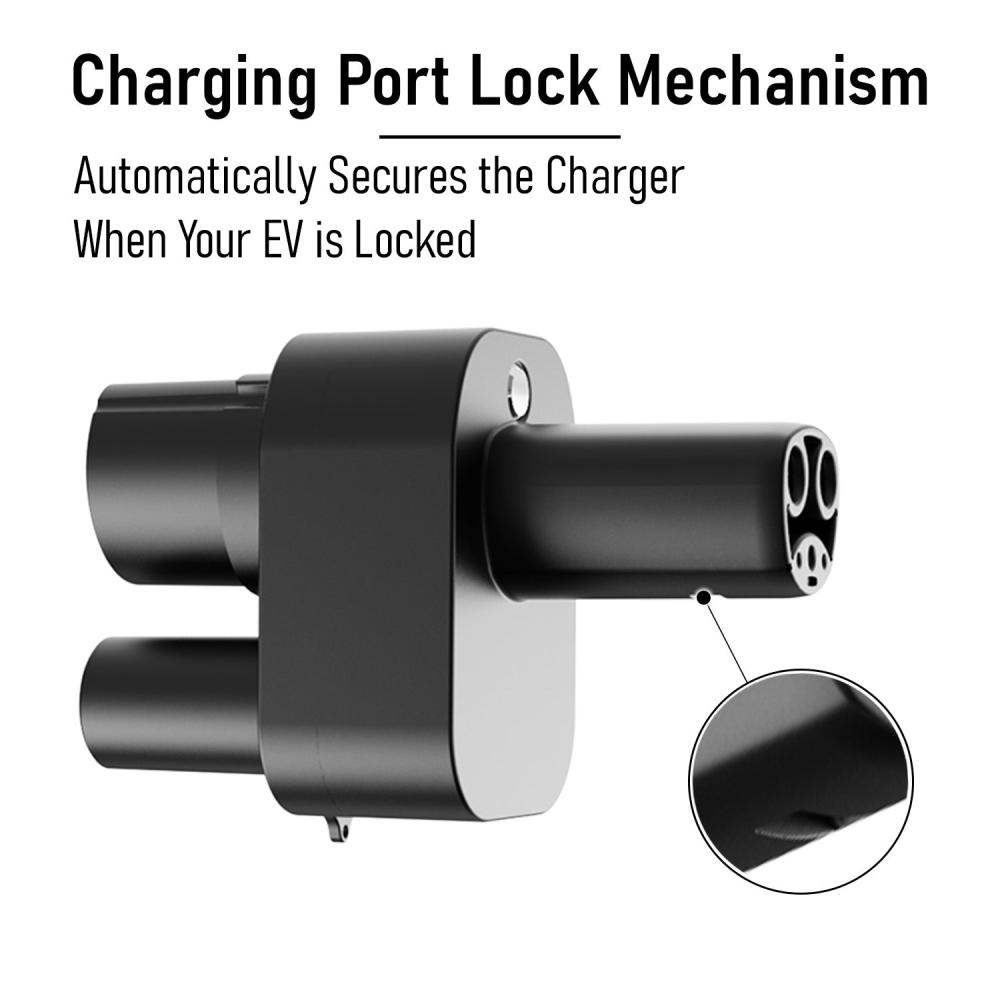

- Secure locking mechanism prevents unauthorized interference.
- Thermal safety switch automatically stops charging at 85°C and resumes when the temperature returns to normal.
- Compatible with all American Tesla models: Model 3, Model Y, Model X, Model S.
- Works with all CCS2 Combo charging stations, including Tesla Supercharger stations.
Technical Specifications:
- Rated Power: DC 250 kW.
- Rated Current: Up to 500 A.
- Rated Voltage: 500–1000 V.
- Protection Rating: IP54.
- Service Life: Over 10,000 cycles.
- Operating Temperature: -40℃ to +85℃.
- Pins: Silver-plated copper alloy.
- Insulation Resistance: Max 0.7 mΩ.
- Safety: Dual thermal cut-off switch.
- Housing: PC + ABS.

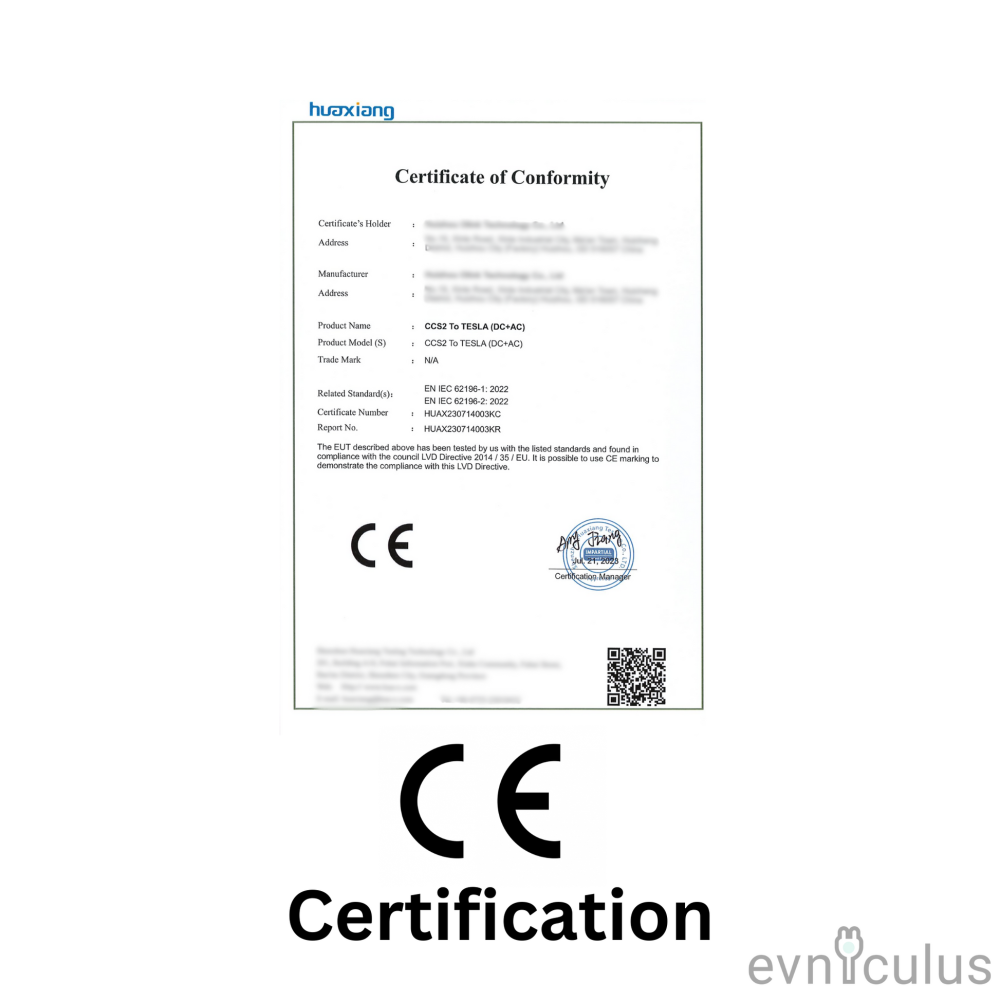

- Certifications: CE.
Notes:
- Vehicles manufactured before 2020 require a CCS module upgrade for full compatibility.
- Warranty: 24 months.
- Extended warranty available up to 60 months with full support.
- By completing the purchase, the customer agrees to Auton Store’s terms & conditions and approved installation policy.
