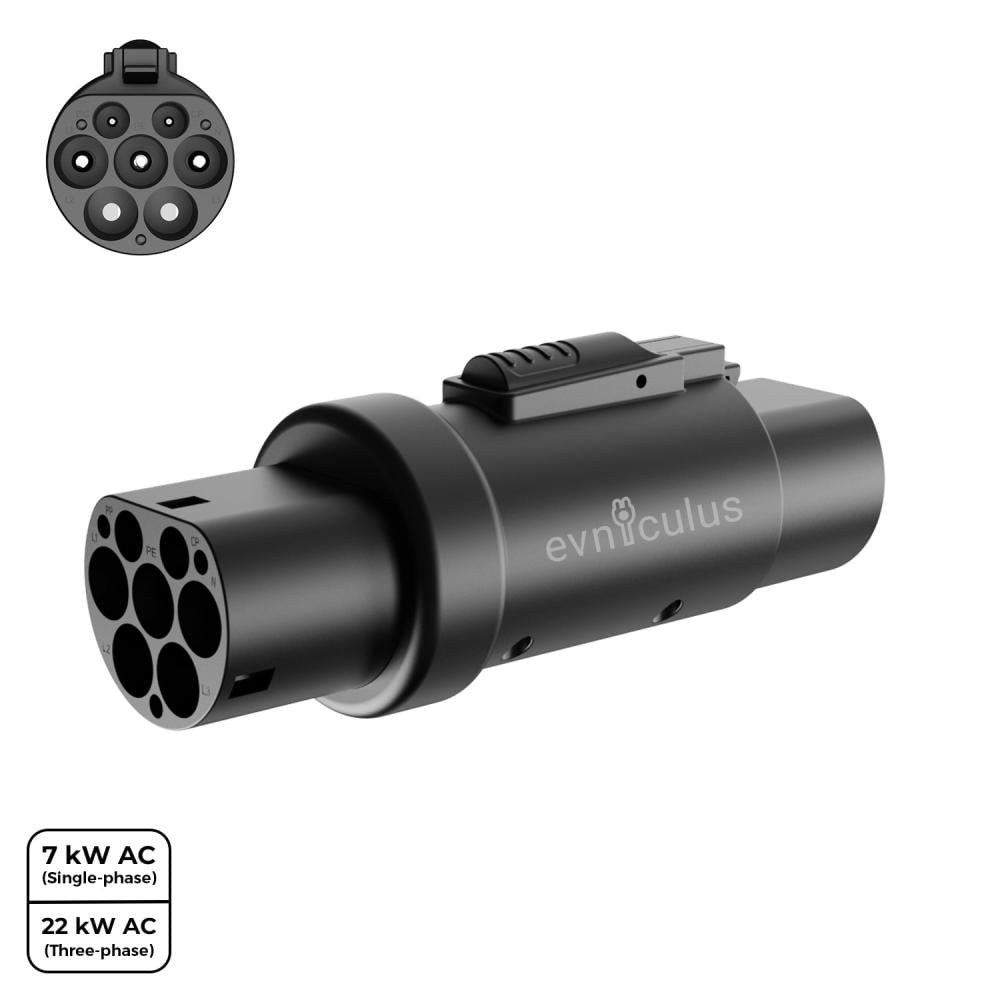

Type 2 to GBT Adapter – Charging Chinese Electric Vehicles (up to 22 kW)
The Type 2 to GBT adapter allows you to easily charge Chinese electric vehicles via three-phase AC Type 2 stations, with power up to 22 kW. It features a safe, certified design that meets the highest European safety standards.
Type 2 to GBT Adapter Features:
- Charge GB/T vehicles through widely available Type 2 AC stations at homes and public locations.
- Charging capacity up to 22 kW via three-phase AC.
- CE certified and fully compliant with IEC 62196 standard.
- Insulated pin design prevents direct contact with hands, enhancing safety.
- Enclosure made of flame-retardant plastic rated UL94V-0.
- Compatible with most Chinese EVs, including Tesla Model 3 / Y, BMW iX3, VW ID.4 / ID.5 / ID.6, Audi e-tron, BYD, and others.
- CCS2 to GBT adapter also available for DC fast charging.
Technical Specifications (Tech Specs):
- Charging type: Three-phase AC.
- Enclosure material: Thermoplastic.
- Flame resistance rating: UL94V-0.
- Pins: Silver-plated copper alloy.
- Rated operating current: 32 A.
- Operating voltage: 240 / 415 V.
- Insulation resistance: >1000 MΩ (DC 500 V).
- Terminal temperature rise: <50 K.
- Withstand voltage: 2000 V.
- Contact resistance: ≤ 0.5 mΩ.
- Mechanical life: >10,000 plug-ins without load.
- Operating temperature: -30°C to +50°C.

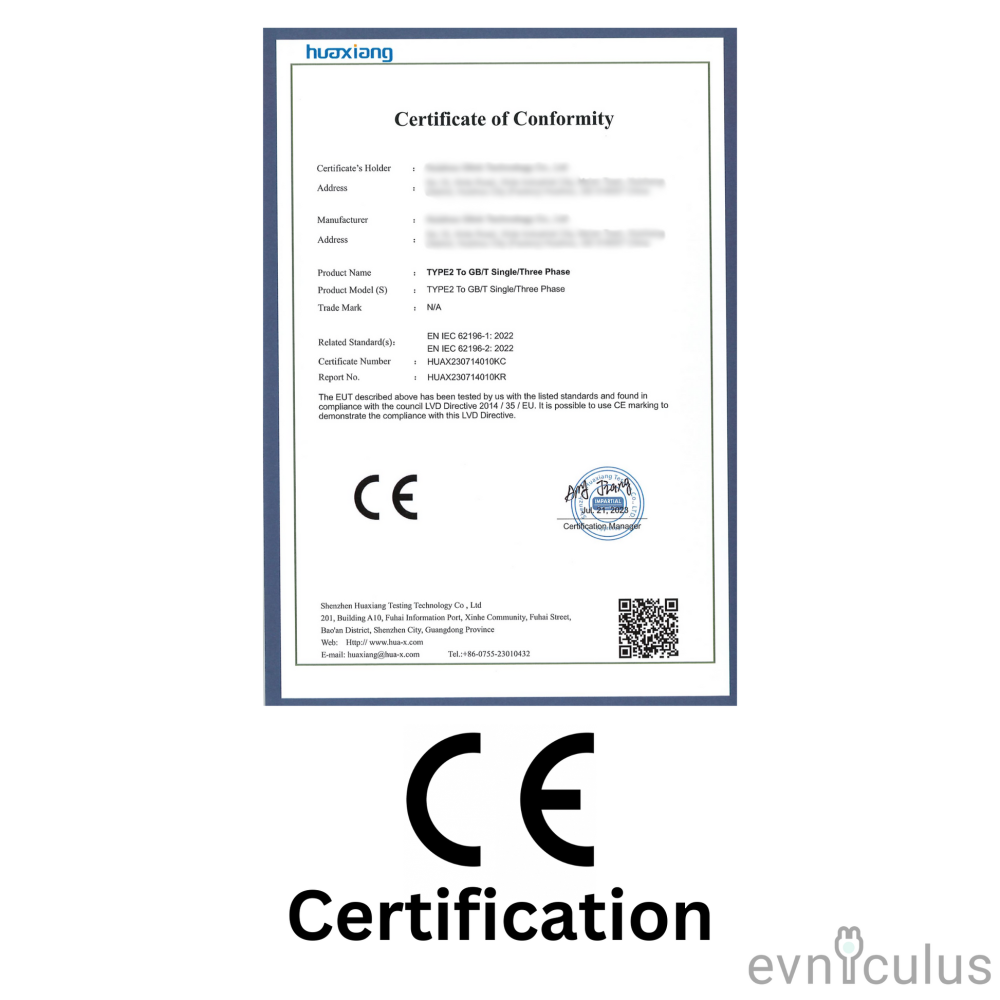

- Certification: CE approved.
Notes:
- Warranty: 24 months.
- Optional extended warranty up to 60 months with full support.
- By completing the purchase, the customer fully and bindingly acknowledges and agrees to the terms and conditions and the approved installation policy of the Auton store.
