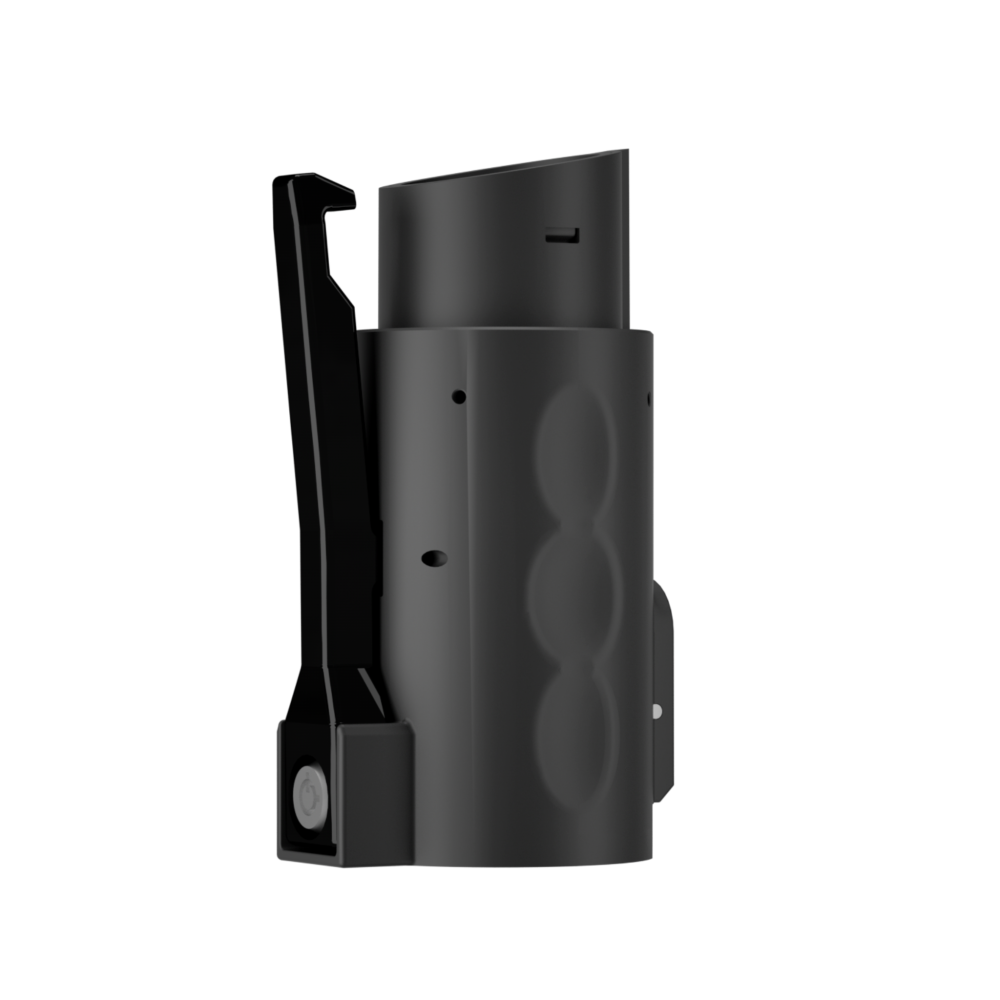

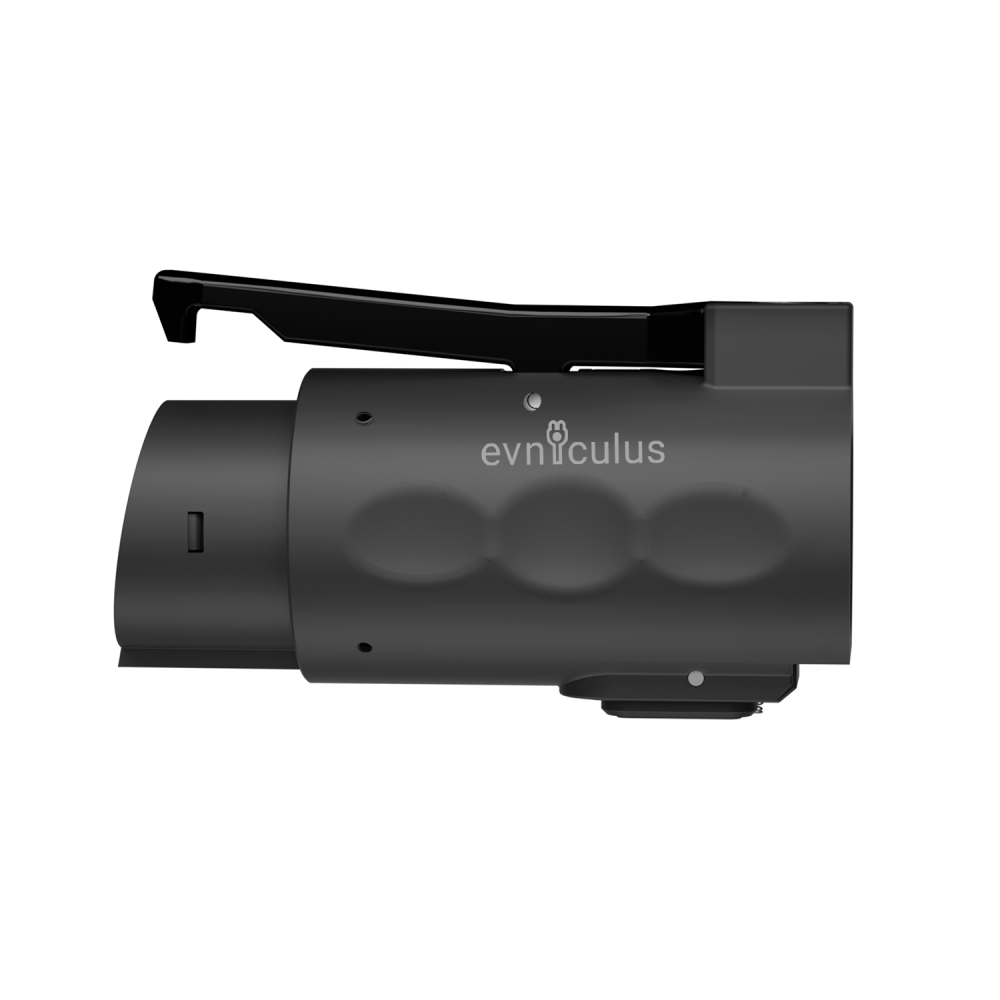

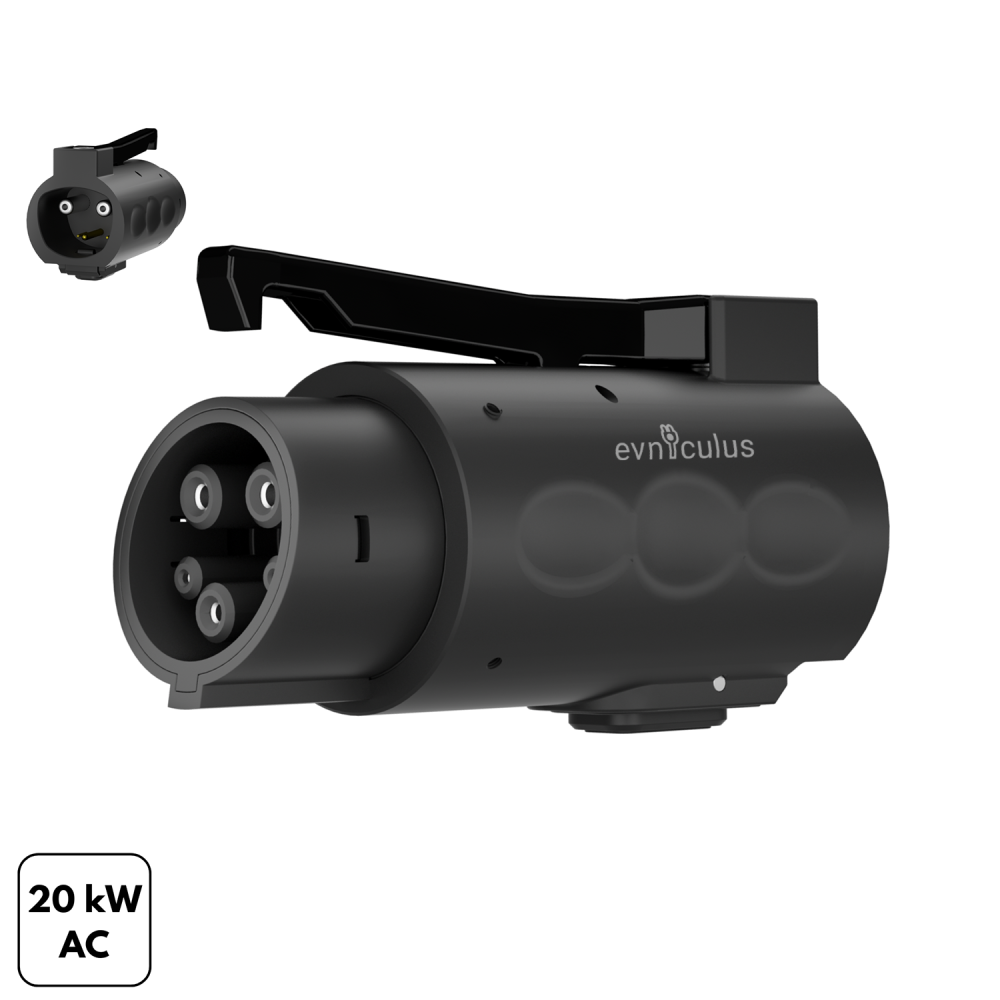

The NACS to Type 1 (J1772) adapter allows you to charge any electric vehicle equipped with a Type 1 port using Tesla AC charging stations, including Destination Chargers, Wall Connectors, and Universal Mobile Connectors, delivering strong performance with a high level of safety.
Note: Not compatible with Tesla DC fast chargers (Superchargers).
Key Features of the NACS to Type 1 AC Adapter:
- Easily charge Type 1 vehicles at Tesla AC stations without additional adapters.
- High charging capacity up to 20 kW with current up to 80A.
- Compatible with all vehicles using Type 1 (J1772) ports.
- Lockable design:
- Automatically locks inside the vehicle during charging.
- Can be secured with a key at the charger—no extra lock required.
- IP54 protection rating – resistant to water and dust.
- Compact and lightweight design for easy carrying and storage.
- Certified CE, TÜV, and RoHS to ensure top safety and quality standards.
Technical Specifications:
- Maximum power: Up to 20 kW.
- Operating voltage: 240V AC.
- Maximum current: Up to 80A.
- Connector material: Titanium-plated copper alloy.
- Housing material: UL94V-0 flame-retardant.
- Protection level: IP54.
- Operating temperature: -30°C to +50°C.
- Safety features: Dual thermal safety switch, adapter lock during charging, key-lock capability at the charger.
- Certifications: CE / TÜV / RoHS.
Notes:
- 24-month warranty.
- Option to add extended warranty up to 60 months with full support.
- By completing the purchase, the customer agrees to Auton Store’s terms & conditions and installation policy.
