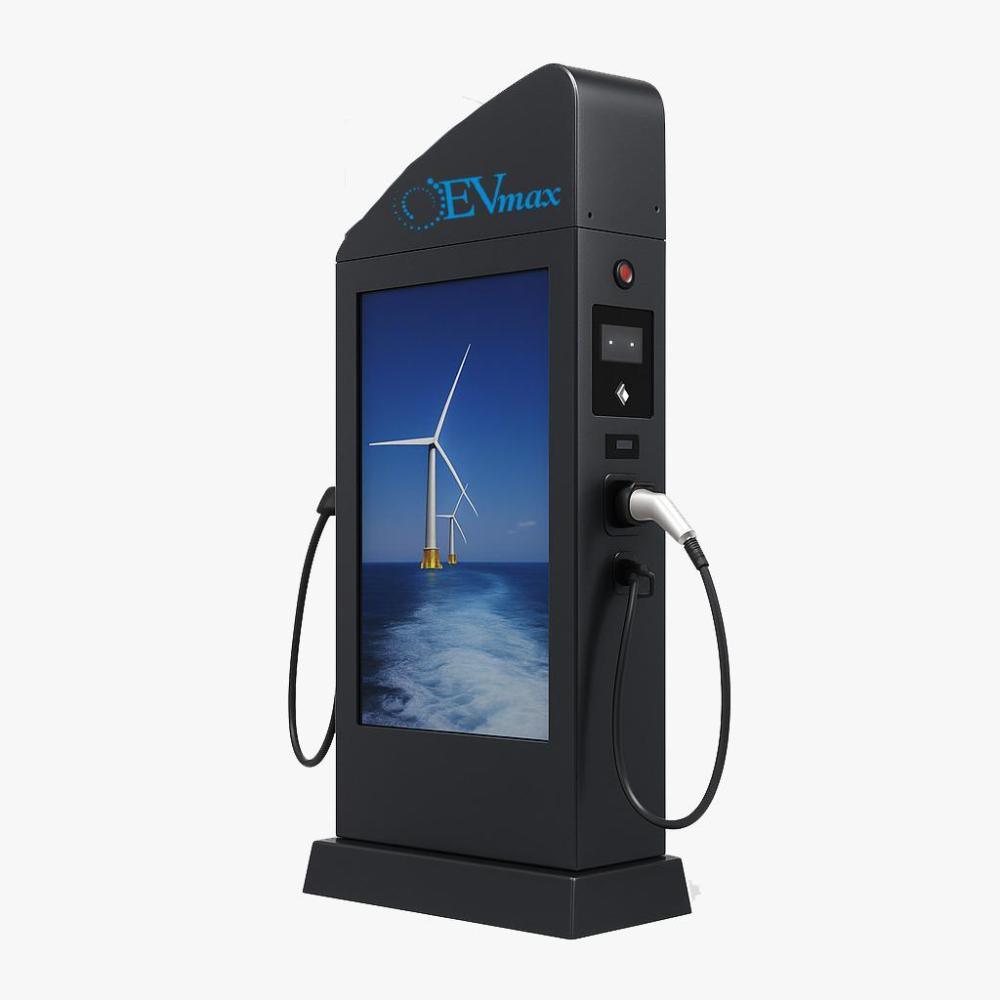

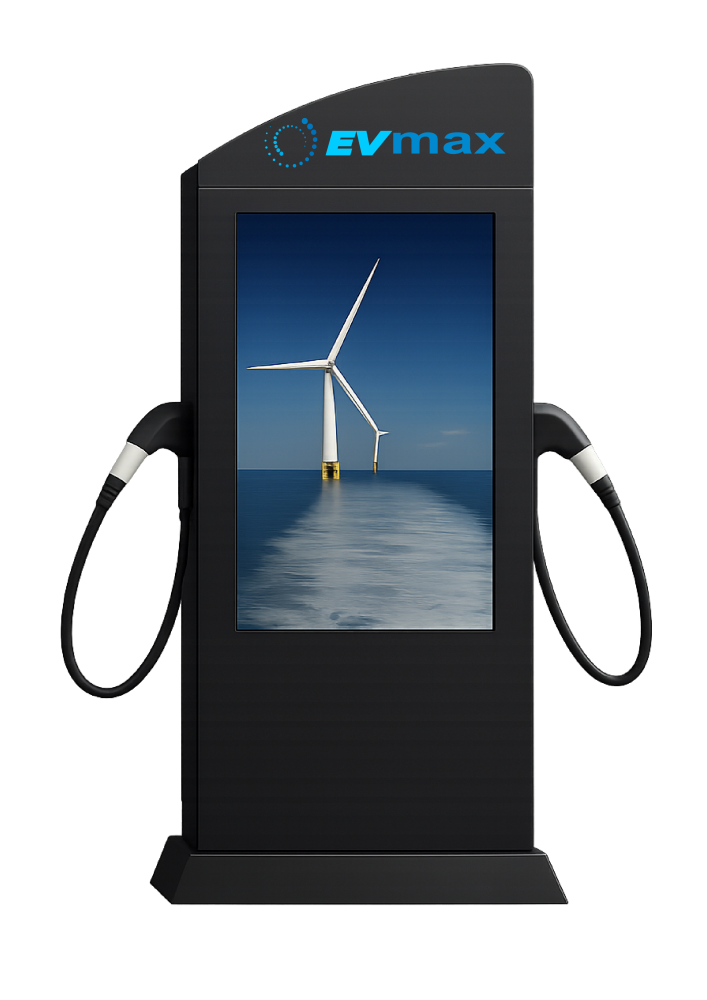

EVmax Smart Fast Charging Station with 44 kW Capacity and Advertising Screen

Fast Charging Station

6,666.33 USD

The EVmax commercial charging station is a complete solution for charging electric vehicles in public and commercial locations, combining high performance and smart connectivity technologies with an integrated advertising platform.

It is designed to provide a reliable and fast charging experience with the ability to utilize the advertising screen to generate additional advertising revenue in high-traffic locations.


Features of the EVmax Charging Station:

  • Total charging capacity up to 44 kW (22 kW per output).
  • Two independent charging outputs to charge two vehicles at the same time.
  • Large 55-inch advertising screen to transform the charging point into a revenue-generating marketing platform.
  • Smart 4.3-inch operation display to show charging status and consumption.
  • Integrated connectivity via Ethernet, Wi-Fi, 4G, Bluetooth.
  • Supports OCPP 1.6J protocol for integration with charging management systems.
  • User authentication via RFID card or password.
  • Comprehensive electrical protection system against overvoltage, overcurrent, overheating, and lightning.
  • Dust and water resistant with IP54 protection rating.
  • Suitable for indoor and outdoor installation in commercial and public locations.


Technical Specifications (Tech Specs):

  • Total capacity: 44 kW.
  • Charging outputs: 2 × 22 kW.
  • Charging type: AC three-phase.
  • Input voltage: 400 V ±15%.
  • Advertising screen: 55 inches.
  • User display: 4.3-inch LCD.
  • Communication protocol: OCPP 1.6J.
  • Connectivity: Ethernet / Wi-Fi / 4G / Bluetooth.
  • Charging cable length: 5 meters.
  • Protection rating: IP54.
  • Device weight: less than 120 kg.


Investment in Advertising Through the Charging Station:

The station provides an integrated advertising screen that can be utilized to display commercial advertisements, transforming the charging point into a revenue-generating media platform during charging sessions that usually last from 20 to 60 minutes.


Notes:

  • To download the technical specifications click here.
  • The price includes installation and mounting only without electrical extensions.
  • By completing the purchase process, the customer acknowledges full and binding acceptance of the terms and conditions and the installation policy approved by Auton.
