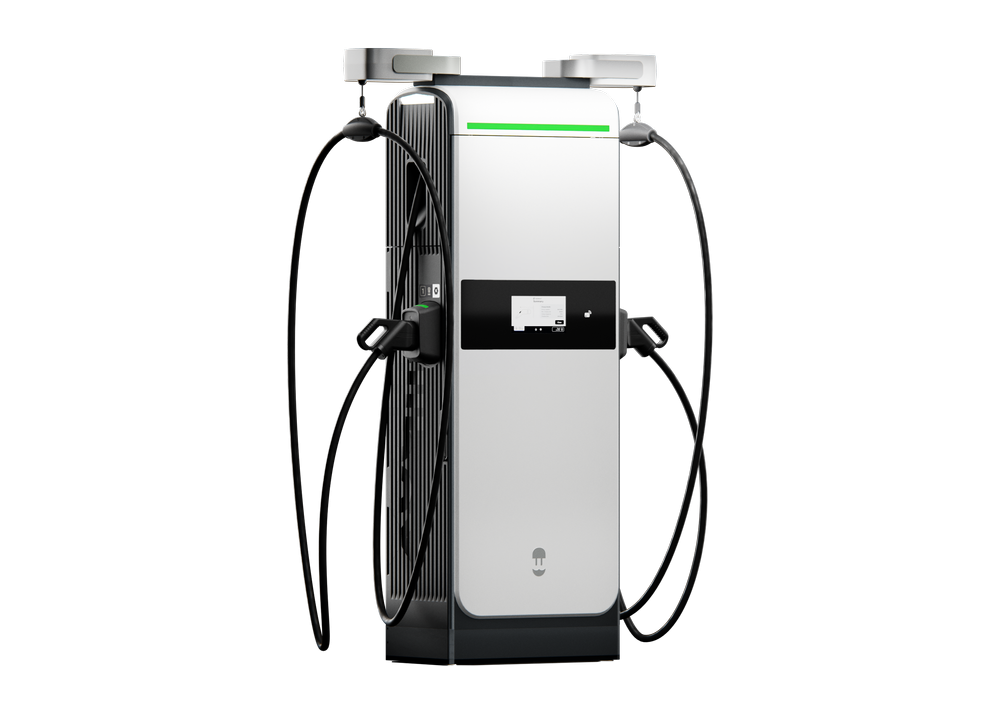

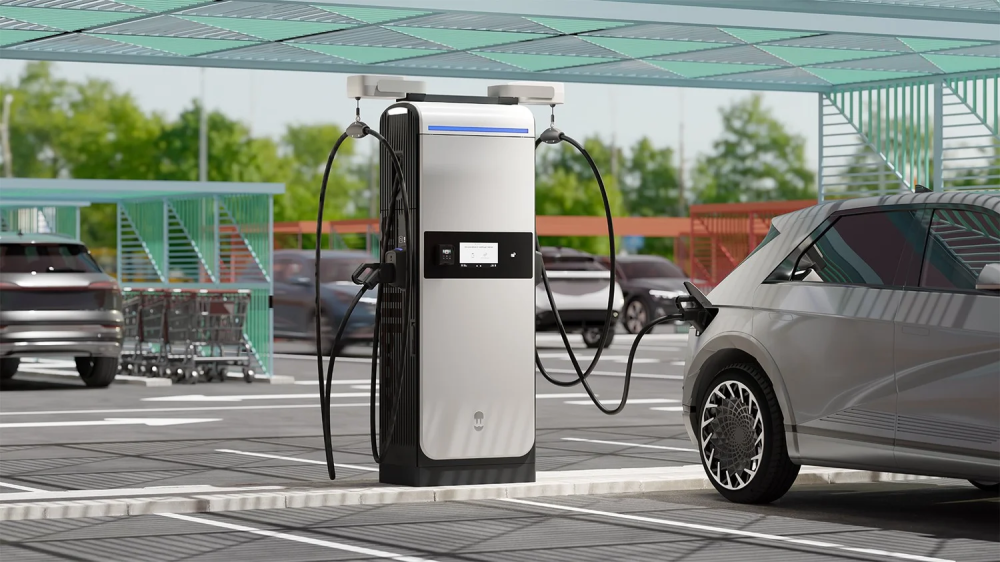

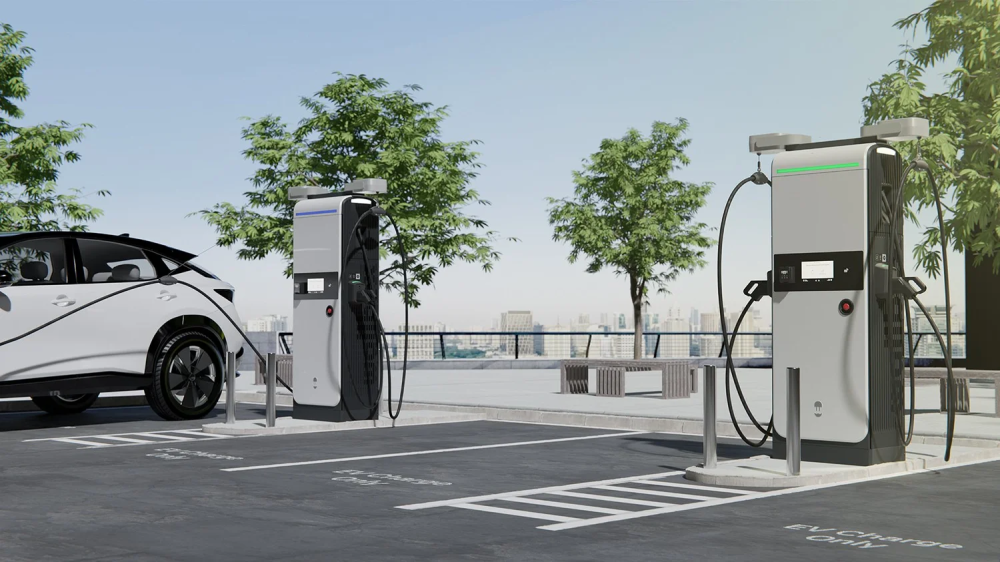

The Wallbox Supernova is the next generation of public fast-charging solutions. It is designed for maximum reliability and operational efficiency, featuring an innovative cable management system that ensures a seamless user experience. With simultaneous charging capability and high compatibility, it represents a smart investment for public commercial locations.
Key Advantages of Supernova DC Station:
- Ultra-Fast & Flexible Charging: Multiple power options ranging from 60 kW up to 240 kW to meet the needs of various vehicle types.
- Durable User Interface: Equipped with a 10" anti-vandal color touch display that is sunlight readable.
- Exceptional Energy Efficiency: Nominal efficiency of 95% with a high power factor (>0.98), minimizing electrical losses.
- Integrated Smart Connectivity: Comprehensive support for connectivity via 4G LTE, Ethernet, and Wi-Fi, with full readiness for OCPP 2.0 and Plug & Charge.
- Cable Management System (CMS): Features an automated retracting system that returns cables to their initial position, maintaining site cleanliness and connector safety.
- High Protection & Reliability: Robust IP54-rated enclosure for weather resistance and IK10 impact protection, capable of operating at altitudes up to 2000 m.
- Advanced Electrical Safety: Integrated protection including MCCBs, surge arrestors, and automatic grid disconnection.
- Flexible Authentication & Payment: Supports activation via RFID cards, smart apps, or a factory-fitted credit card reader for direct payment.
Technical Specifications (Tech Specs):
- Total Power: Available in models 60, 80, 120, 150, 160, and 240 kW.
- Output Voltage Range: 150 - 1000 VDC.
- Current Type: Three-Phase AC (3P+PE or 3P+N+PE).
- Input Supply Voltage: 400V ±10%.
- Charging Outputs: Dual-outlet (CCS2 + CCS2) supporting simultaneous charging.
- Cable Length: 5 meters with an automated retraction system.

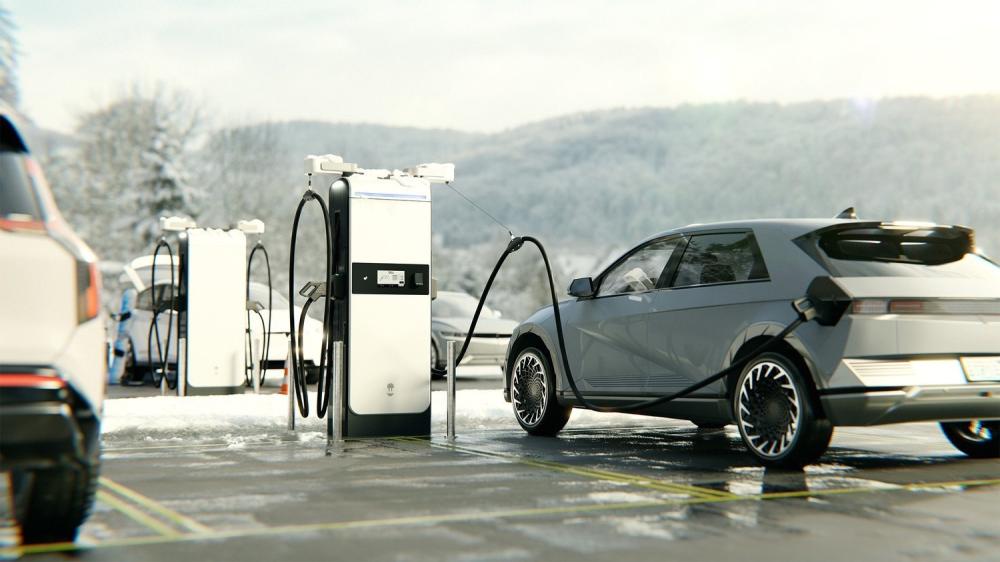

- Operating Environment: From -30°C to +50°C.
- Noise Level: Less than 65 dBA in Low Noise Mode.
- Cooling Method: Active air cooling.
Additional Notes:
- To download the full technical specifications, click here.
- Global Certifications: Compliant with CE and IEC standards, supporting global charging protocols ISO 15118 and DIN 70121.
- Installation & Dimensions: Designed for floor mounting with compact base dimensions of 2000 x 453 x 714 mm.
- Customization Options: Ability to add company logos or full-charger vinyl wrapping to enhance brand identity.
- Metering: Equipped with certified AC and DC meters (MID/Eichrecht compliant) for precise energy billing.
