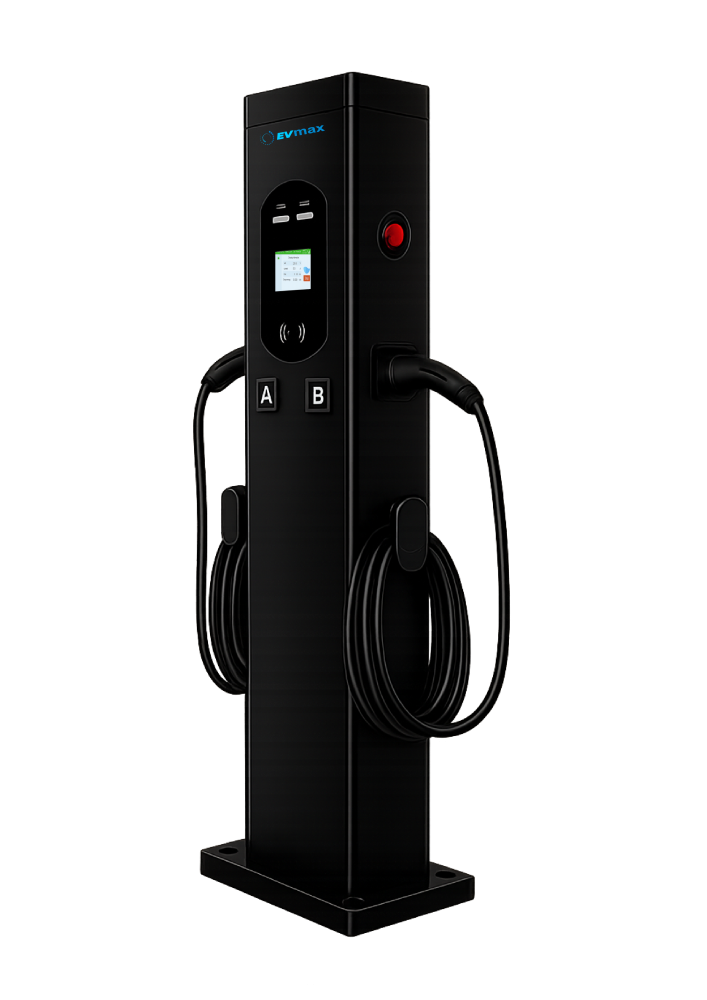

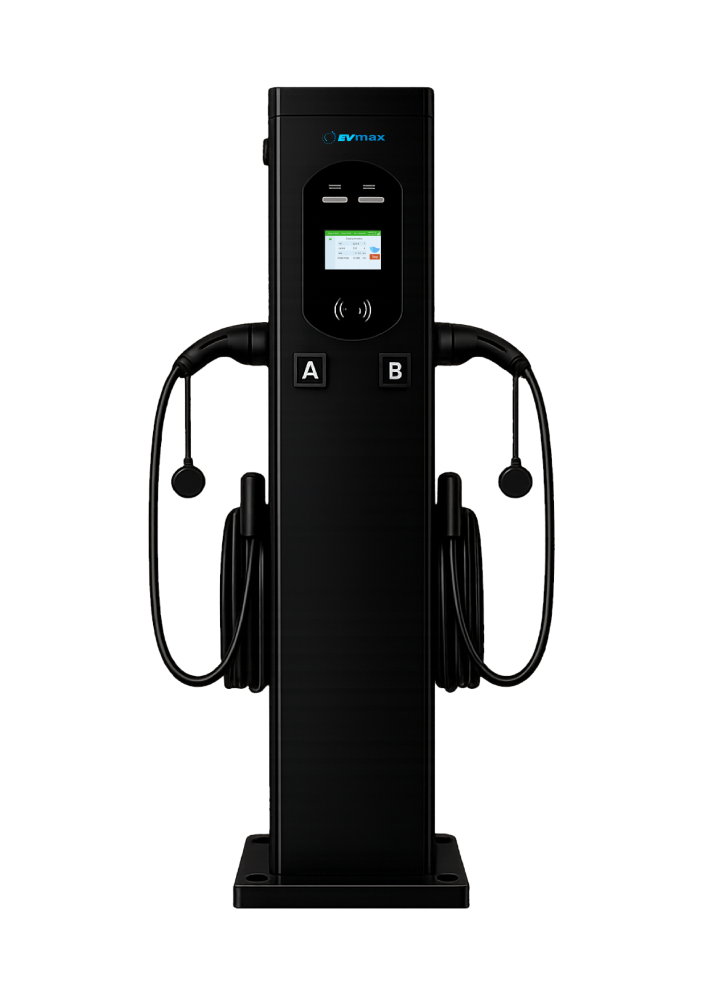

The EVmax Galaxy (Model ENC-ACB023A) charging station is an advanced, weatherproof solution designed for locations requiring high-efficiency charging. This station combines a modern "Floor Mounted" design with high capacity, making it ideal for installation in public parking lots and luxury residential complexes.
Advantages of the EVmax Galaxy Charging Station:
- Ultra Dual Charging: Total charging capacity of 44 kW with two charging outputs (Double Guns) to serve two vehicles simultaneously.
- Interactive Display: Equipped with a 4.3-inch smart touchscreen for displaying charging data and easy control.
- Maximum Protection: Weather-resistant design with IP55 rating to ensure operation in harsh outdoor conditions.
- Integrated Smart Connectivity: Supports connection via Wi-Fi, 4G, and Ethernet for easy remote management.
- Universal Compatibility: Supports various connector types such as IEC Type 2, GB/T, and Type 1.
- Flexible Authentication: Supports charging activation via RFID cards, QR Codes, or passwords.
- Advanced Safety: Integrated protection system against Over Current, Under Voltage, and Residual (leakage).
- OCPP Support: The station is compatible with the global OCPP 1.6J protocol for connection to central charging management systems.
Technical Specifications (Tech Specs):
- Total Capacity: 44 kW.
- Model No.: ENC-ACB023A.
- Current Type: Three-Phase AC.
- Input Voltage: AC 380V ±15%.
- Frequency: 50/60 Hz.
- Number of Outputs: 2 (Dual).
- Max Output Current: 32 Amp.
- User Display: 4.3-inch LCD touchscreen.
- Ambient Temperature Range: -25°C to 55°C.
- IP Rating: IP55.
- Cooling: Natural Cooling.
Notes:
- To download the full technical data sheet, click here.
- The station is compliant with SASO standards to ensure quality and safety in the Saudi market.
- The price includes installation and mechanical mounting only (does not include basic electrical wiring).
- By completing the purchase, the customer acknowledges full agreement with the terms, conditions, and installation policy approved by Auton.
