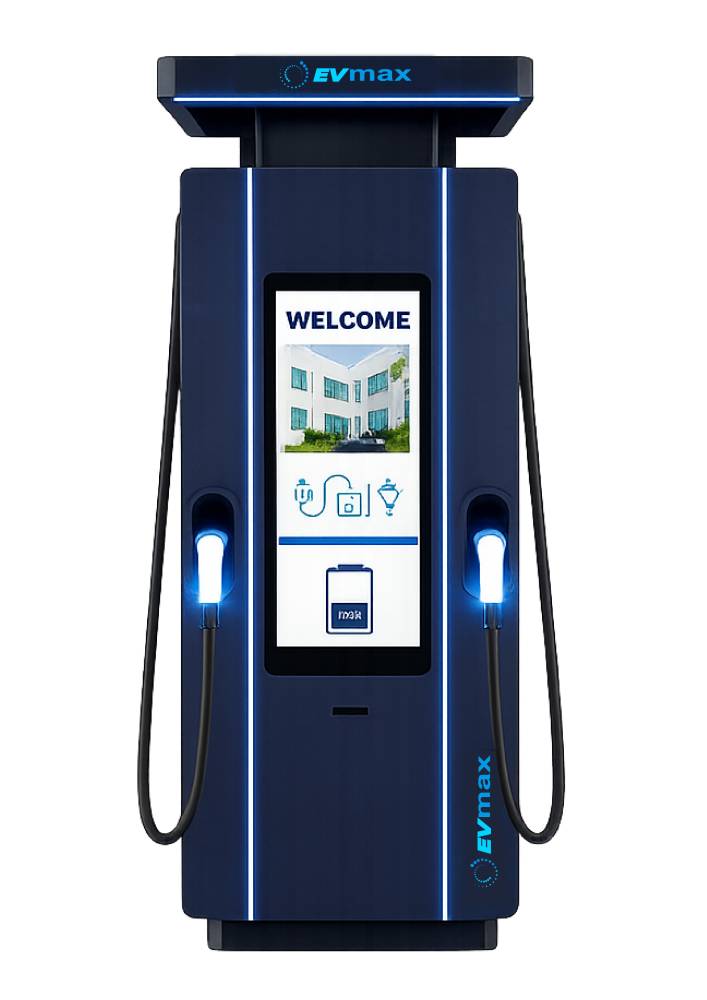

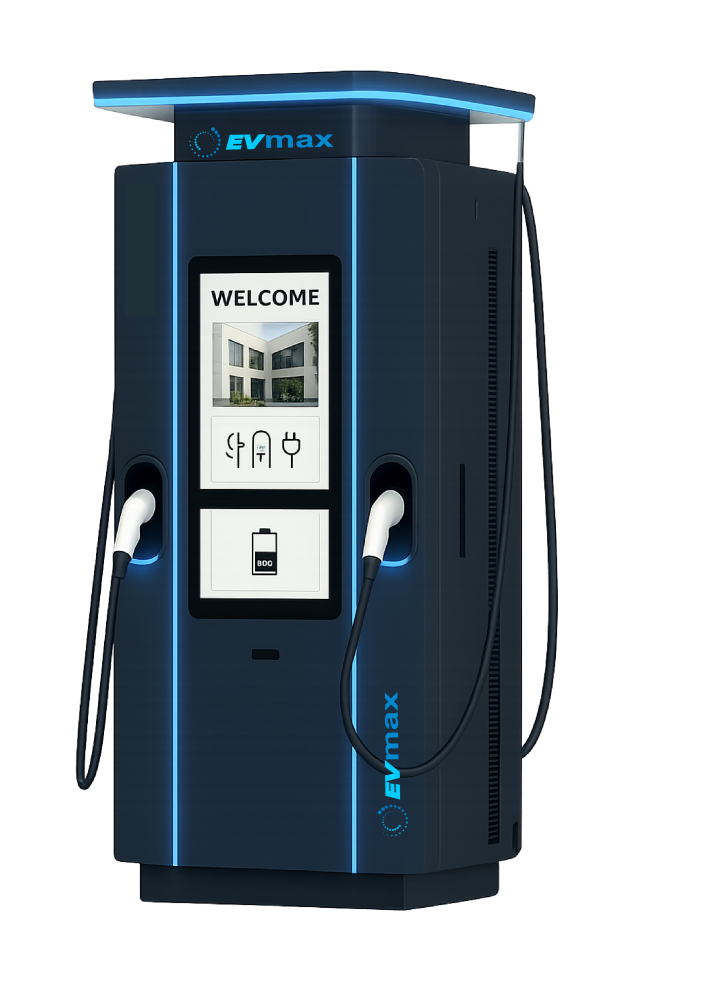

The EVmax DC Charger is a smart and advanced fast-charging solution , engineered to meet the demands of commercial and public sites that require high operational efficiency. The station features massive charging capacities up to 480 kW , with full support for global safety protocols and smart connectivity, making it the ideal choice for the future.
EVmax DC Charger Advantages:
- Ultra-Fast Charging: Flexible charging capacity starting from 60 kW up to 480 kW to suit all types of electric vehicles and buses.
- Advanced User Interface: Equipped with a 12.1-inch smart touch screen (21-inch advertising screen available as an option ) for clear display of charging data.
- Exceptional Energy Efficiency: Delivers an operating efficiency of 95% or higher with a high power factor of 0.99 or more , reducing energy waste.
- Integrated Smart Connectivity: Supports connection via Wi-Fi, 4G, and Ethernet with full compatibility with the OCPP 2.0 protocol for centralized management.
- Universal Plug Compatibility: Double-outlet design supporting various types including CCS1, CCS2, CHAdeMO, GBT, and NACS combos.
- Protection and Reliability: Galvanized steel enclosure with an IP55 weatherproof rating , featuring IK10 impact protection for the shell and IK08 for the screen.
- Advanced Safety System: Comprehensive protection including Over/Under Voltage, Overload, Current Leakage, Grounding, Over Temperature, and Lightening Surge protection , plus an emergency stop button.
- Flexible Authentication: Supports charging activation via RFID cards, QR Codes, or Passwords.
Technical Data (Tech Specs):
- Total Capacity: From 60 kW to 480 kW depending on the model.
- Output Voltage Range: 150 to 1000V DC.
- Current Type: Three-Phase AC.
- Input Voltage: 400V (plus or minus 15%).
- Frequency: 50/60 Hz.
- Charging Outlets: 2 (Double-outlet).
- Cable Length: 5 meters including connector.
- Operating Environment: -25 to +55 degrees Celsius.
- Noise Level: 65 dB(A) or less.
- Cooling Method: Air-cooled (Liquid cooling optional).
Additional Notes:
- To download the full technical specifications, click here.
- Global Certifications: The station holds CE, TUV, ROHS, and SASO certifications to ensure the highest standards of quality and safety.
- Installation: Designed for Floor Mounted installation with bottom inlet or up outlet wiring options.
- Language Support: Primarily supports English, with others available via firmware updates.
- Payment: An optional POS Terminal is available for direct fee payment.
