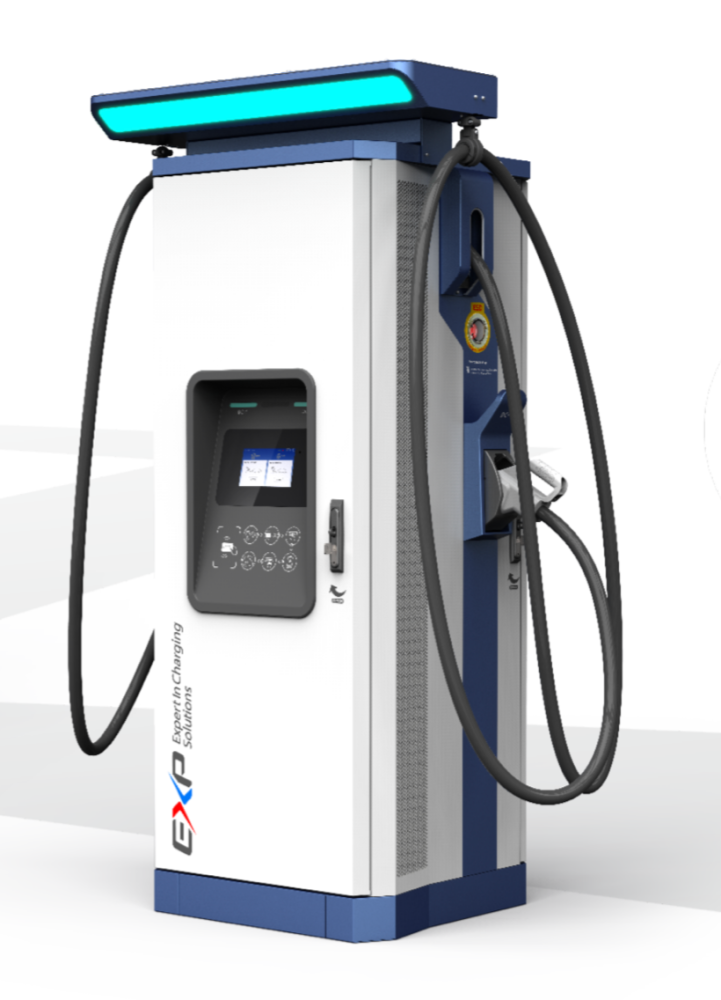

EXP Fast DC Charger (180 kW - 240 kW)

DC Charging Station

-

The EXP Fast DC Charger is a high-performance, all-in-one charging solution designed to be fully compatible with all global EV charging standards. It features a compact, lightweight design for easy installation and a robust IP55-rated enclosure for demanding outdoor applications. With innovative CoolRing™ technology, it enables intelligent power sharing between chargers to maximize operational efficiency.


Key Advantages of EXP DC Station:

  • Massive Charging Capacity: Delivers up to 180 kW or 240 kW of power with a wide voltage range from 150V to 1000V.
  • Triple Vehicle Charging: Supports simultaneous charging of two vehicles via DC outlets plus an optional AC socket for a third vehicle.
  • Innovative CoolRing™ Technology: Allows power transfer between two chargers, enabling a single connector to reach up to 360 kW.
  • Universal Compatibility: Supports all major connector types: CCS1, CCS2, NACS, CHAdeMO, and GBT.
  • Exceptional Efficiency: Achieves up to 95.5% peak efficiency with a power factor >0.99 to minimize energy loss.
  • Smart User Interface: Features a 7" TFT tempered glass touch screen and RGB LED status indicators.
  • Maximum Protection: IP55 and IK10 rated for durability, with comprehensive protections against overtemperature, short circuits, and insulation faults.
  • Smart Maintenance: Supports OCPP 1.6J (upgradable to 2.0) with a WEB/APP backend system for effective remote management.

Technical Specifications (Tech Specs):

  • Total Power: 180 kW or 240 kW models available.
  • Output Voltage Range: 150V - 1000V DC.
  • Max System Efficiency: Up to 95.5%.
  • Additional AC Output: Optional 22 kW / 32A Type 2 socket.
  • Max Output Current: Up to 600A (depending on voltage and model).
  • Operating Environment: -30°C to +70°C (full power up to 50°C).
  • Dimensions & Weight: 700x1750x750 mm | Weight: 260 kg.
  • Cooling Method: Forced air cooling.


Additional Notes:

  • To download the full technical specifications, click here.
  • Global Certifications: Certified by CE/RED, TUV, CB, Energy Star, and cTUVus.
  • Payment Options: Supports RFID, mobile apps, and optional factory-fitted POS terminals.
  • Cable Management: Optional top-mounted cable retractors with integrated light bars are available.

-
